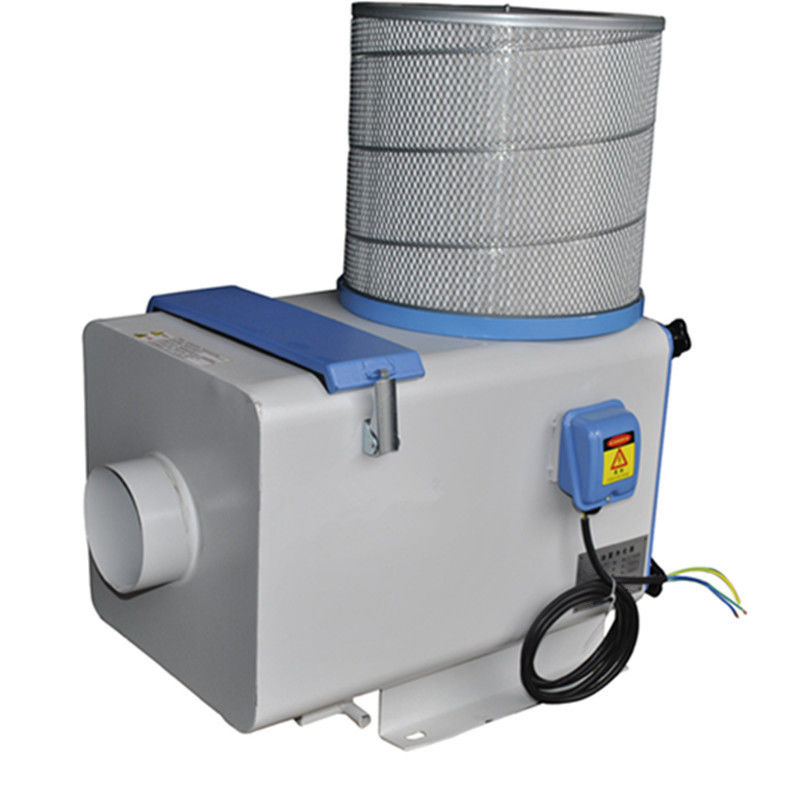

Mazak Haas CNC Milling Machine Air Filter Oil Mist Collector
The Oil mist collector machine adopt centrifugal separation and high-efficiency filtration technology to remove oil mist, coolant mist, fume and steam in machine and manufacturing facilities to ensure a clean and safe work environment .
Firstly,the oil mist is drawn into the unit , it passes through the split cone and many stage filtration devices to filter out stray solid particles . Then the strong Centrifugal force pushes oil to the unit's outer case where it drains back to the machine for re-use or collection . Finally , The clean air is returned to the workshop through the top of the HEPA filter . After the oil mist is treated by the system, it is effectively collected and purified, and the collection and purification efficiency is as high as 98% or more.
| Model |
GFT500 |
GFT750 |
GFT1500 |
GFT2200 |
| Voltage |
50 / 60Hz , 3phase , 120V, 220V, 380V,400V ,415V |
| Power(kw) |
0.5 |
0.75 |
1.5 |
2.2 |
| Air Volume(m3/h) |
500 |
800 |
1200 |
1500 |
| Air pressure(pa) |
1100 |
1200 |
1800 |
1800 |
| Noise(Db) |
58 |
65 |
68 |
68 |
| Capture efficiency |
99.97% |
| Suction diameter(mm) |
Φ98 |
Φ123 |
Φ148 |
Φ198 |
| Dimensions(L*W*H)mm |
650*390*500 |
710*430*530 |
860*450*550 |
910*530*640 |
Advantages of installing oil mist collector
1.The oil mist produced by the machines has adverse effects on the human body's respiratory system and skin health, and will reduce the work efficiency of employees , long-term work in this environment, the probability of occupational disease is high .
2. If oil mist diffuse in the air for a long time , it will lead to failure of the machine's circuit system and control system, increase maintenance costs;
3. The oil mist purifier can recycle the cutting fluid of the machine tool and reduce its loss.
Application :

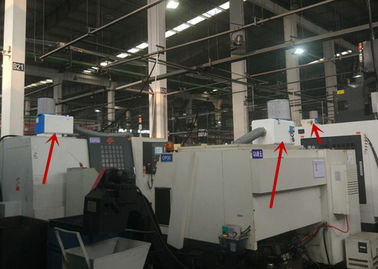

The oil mist collector is a purification device designed for various types of processing machine tools.
It is widely used in CNC lathes, washing machines, cylindrical grinding machines, internal cylindrical grinding machines, and surface grinding machines. hobbing, milling and edging machine tools, vacuum pumps, spray test chambers, electric discharge machining, CNC machined machining centers and other processing equipment produced in the oil mist, with high purification efficiency, low noise, easy use .
