Silent 45 - 430A Diesel Compact Welder Generator For TIG Process Aux Power 30kw

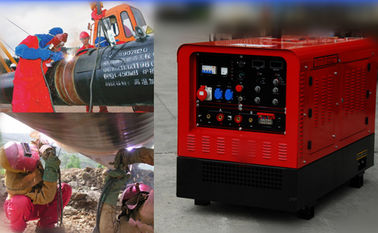

Büyük resim : Silent 45 - 430A Diesel Compact Welder Generator For TIG Process Aux Power 30kw

Ürün ayrıntıları:

Place of Origin:	China
Marka adı:	Genor Power
Sertifika:	ISO9001:2008, CE, CCC
Model Number:	GNAW450

Ödeme & teslimat koşulları:

Minimum Order Quantity:	1 Set
Fiyat:	negotiable
Packaging Details:	Wooden Package / Plywood case
Delivery Time:	Within 20 days
Payment Terms:	T/T ,L/C ,Western Union, MoneyGram, D/A
Supply Ability:	200/sets per Month

İletişim

Detaylı ürün tanımı

Product name:	Diesel welding generator machine	Engine type:	4 strok ,direct injection ,Diesel engine
Welding Current:	45 - 430 Ampere	Cooling system:	Water cooled
Excitation Type:	AVR Brushless Self exciting	Engine RPM:	1500rpm to 1800rpm
Frequency:	50Hz or 60Hz	Protection Class:	IP23
Start system:	Electric start
Vurgulamak:	genset welder generators , portable welder generator

Silent 45 - 430 Ampere Diesel Welder Generator for SMAW , GMAW , TIG Process Aux power 30kw

The diesel welder generator adopt advanced inverter soft switch technology, PWM control technology, and negative feedback control technology , enjoys excellent dynamic quality and welding performance within full voltage/current regulation range.

The diesel welding generator is equipped with diesel engine driven welding machines with MMA/TIG/FCAW function, and Strong auxiliary power:30 KW output for three-phase, 7KW output for single-phase.

Advange:

1. Electric Starter ensures easy starting

2. Separate welding range with fine adjustment in each range

3. Great Welding Performance

4. Auxiliary power while welding

5. 500 Amperes output suitable for 1.6 to 8.0 mm Air Carbon Arc Gouging and Stud Welding

6. Adopts advanced inverter soft switch technology, PWM control technology, and negative feedback control technology,enjoys excellent dynamic quality and welding performance within full voltage/current regulation range.

Welding Processes	MMA			TIG			FCAW
Open Circuit Voltage (V)	75			75			75
Current Range (A)	30-500			30-500			30-500
Welding Current (A)	387	430	500	387	430	500	387	430	500
Welding Voltage (V)	35.5	37.2	40	25.5	27.2	30	33.3	35.5	39
Duty Cycle	100%	80%	60%	100%	80%	60%	100%	80%	60%
External Characteristic Curve	Drop Characteristic			Drop Characteristic			Flat Characteristic
Generator output
Power	20Kw
Excitation Type	AVR Brushless Excitation
Frequency	50Hz or 60Hz
Phase	Three Phase					Single Phase
Output Voltage/Power	AC 400V/20Kw					AC 230V/6Kw
Engine
Engine type	4 stroke , 4cylinder , direct injection , heavy duty diesel engine
Fuel	Diesel
Rated Power	26Kw
Rated Speed	1500 RPM
Low Temperature	Pre-heated Start
Warning Type	Water Temperature /Oil Pressure/Battery Voltage
Fuel Capacity	60L
Cooling Method	Water-cooled
Fuel Consumption	5.6L/hr
Complete appliance
Weight	710kg
Dimension(mm)	1500×800×1100
Protection Class	IP23

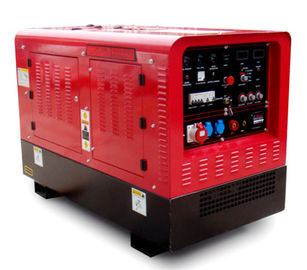

Silent 45 - 430A Diesel Compact Welder Generator For TIG Process Aux Power 30kw 0

Silent 45 - 430A Diesel Compact Welder Generator For TIG Process Aux Power 30kw 2

Silent 45 - 430A Diesel Compact Welder Generator For TIG Process Aux Power 30kw 3
