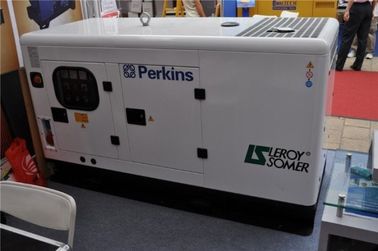

Super Silent 10 kva Perkins Diesel Generator With 403D-11G Engine , Three Phase and Four Wire
1. Perkins engine 403D-11G In-Line 3 cylinders 1500RPM
2.Stamford Brshless Alternator
3. Self-Exciting alternator 50Hz, 230V/400V, 3phase
4. automatic transfer switch and Parallel system
5.Three Phase Four Wire
Specifications:
| perkins diesel generator set |
| GEN-SETS |
Model |
GNRP10 |
| Engine Brand |
Perkins |
| Rated Output(kva) |
10 |
| Current(A) |
14.4 |
| Power factor(cosφ) |
0.8 |
| Frequency(hz) |
50/60 |
| Fuel Consumption(g/kw.h) |
≤252 |
| The regulating rate of instantaneous voltage |
≤-10%/ +15% |
| The time of steady voltage |
≤1.5sec |
| The waving rate of voltage |
≤0.5% |
| The regulating rate of steady frequency |
≤3% |
| The regulating rate of instantaneous frequency |
≤±5% |
| The time of steady frequency |
3sec |
| The waving rate of frequency |
≤0.25% |
| Dim L×W×H(mm) |
1200X700X1100 |
| Weight(kg) |
300 |
| Diesel engine |
Engine model |
403D-11G |
| Cylinder |
3 |
| Bore*Stroke(mm) |
77*81 |
| Lubricating oil capacity |
4.9 |
| Rated speed(rpm) |
1500/1800 |
| Cooling method |
Closed water cooling |
| Starting system |
Electrical start |
| Displacement(L) |
1.13 |
| Alternator |
Brand |
Stamford/Marathon/Engga |
| Type |
Brushiess |
| The connecting way of the phase |
Three phases four lines |
| Insulation degree |
H degree |
| Grading Protection |
IP23 |
Digital Control panel
Controller Brand: Smartgen, Deepsea,ComAp
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown
Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6. 1m<80DBA / 7m<70DBA
Optional:
1. Trailer type
2. Soundproof / water proof
3. ATS (automatic transfer switch)
4. Parallel system
5. Remote system
PMC System:
1. Standard 23 pitch windings avoid excessive neutral current
2. Permanent magnet generator system provides constant excitation under all condition
3. Optional accessories available for easy paralleling with mains or other generators
4. AVR auto voltage regulation, auto exciter, auto adjustment
